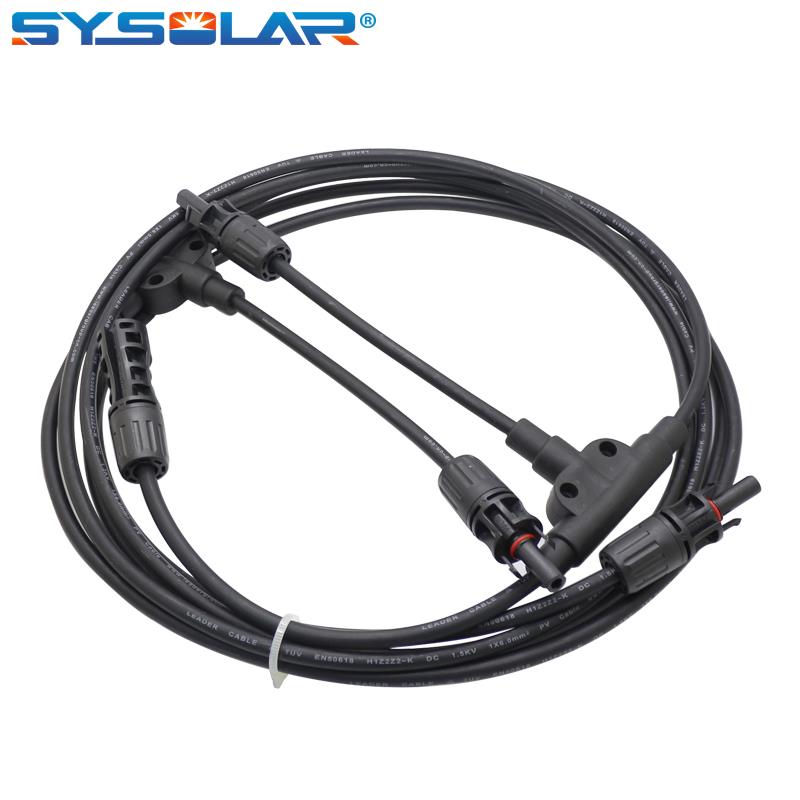

SYSOLAR® is a leading international manufacturer of Solar panel extension cable, Our headquarters in China and warehouses in the USA and Germany.With more than 20 years of experience in the field of solar cable. Size from 1.5mm2 to 240mm2.We have adequate solutions to wiring photovoltaic solar systems to meet your need and guarantee the long-term operation of solar systems.

•     *Double-insulated,Insulation cross-linked Polyolefin
•     *20Years of Production Experience In Solar Cable
•     *Stable conduction and reduced maintenance costs
•     *Anticipate service life -25 years outdoors
•     *RoHS and CE & TÜV(EN50618 H1Z2Z2-K)
•     *Free Sample is available,Contact us now
•

•


    Specification Of Solar panel extension cable

Solar panel extension cable
	Conductor	Tinned fine Re copper strands,according to VDE0295/IEC60228.Class5
	Insulation	Polyolefin Copolymer electron-beam cross-linked
	Sheath Jacket	Polyolefin Copolymer electron-beam cross-linked
	Nominal Voltage	Uo/U=600V/1000VAC,1000/1800VDC
	Test voltage	6500V,50Hz,5Min
	Temperature Rating	-40oC-125oC, More Than 25 Years (TUV)
	Fire Performance	IEO 60332-1
	Smoke Emission	IEC61034,EN 50268-2
	Low Fire Load	DIN 51 900
	Certification	TUV 2PFG 1169/08.2007 PVI-F

    Dimensions Of Solar panel extension cable
      The size from 1.5mm² to 120mm².

Construction	Conductor Construction	Conductor	Outer	Resistance Max	Current Carring Capacity
n×mm2	n×mm	mm	mm	Ω/Km	A
1×1.5	30×0.25	1.58	4.90	13.3	30
1×2.5	50×0.256	2.06	5.45	7.98	41
1×4.0	56×0.3	2.58	6.15	4.75	55
1×6	84×0.3	3.15	7.15	3.39	70
1×10	142×0.3	4.0	9.05	1.95	98
1×16	228×0.3	5.7	10.2	1.24	132
1×25	361×0.3	6.8	12.0	0.795	176
1×35	494×0.3	8.8	13.8	0.565	218
1×50	418×0.39	10.0	16.0	0.393	280
1×70	589×0.39	11.8	18.4	0.277	350
1×95	798×0.39	13.8	21.3	0.210	410
1×120	1007×0.39	15.6	21.6	0.164	480

    Certifications
      SYSOLAR obtains TUV,CE,RoHS and other certifications.

    Production Processes of Solar panel extension cable
      The factory production process in line with ISO standards, the whole quality control.

    Packing For Shipment
      Multiple packaging methods, suitable for different transport conditions.

    Contact us now, Free sample is available.
