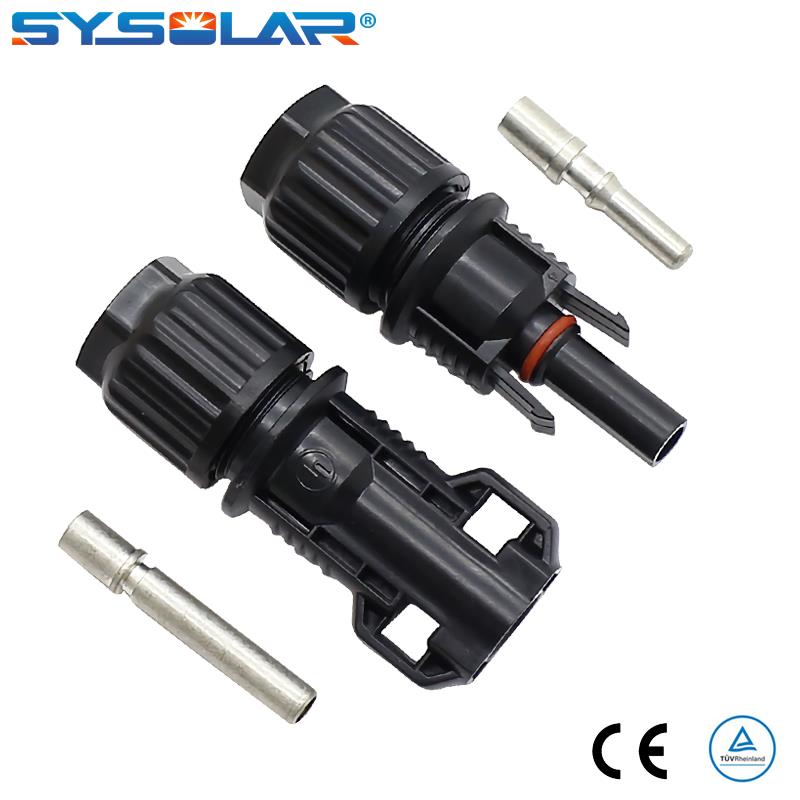

Conectores de cable solar MC4 para conexiones solares pv

< >

* Compatible con el conector solar original MC4 PV-KBT4

* Certificado TUV / UL / CE y 15 años de experiencia en fabricación

* Protección IP68 para exterior resistente al agua y resistencia UV

* Tecnología probada de contacto múltiple con estabilidad a largo plazo

* Contáctenos ahora, cotice en línea y soporte La muestra gratis

Enketo Nun

Produktaj Detaloj

LEADER GROUP(SYSOLAR® is the trademark) is leading manufacturer of MC4 solar cable connectors in China for 15 years. Using for safe and simple serial connection of solar PV modules, Certification with TUV/UL standard, Fits for Ø2.5-Ø10MM² PV solar cables. Proven MultiContact technology with high long-term stability, Perfect support for the long-term operation of photovoltaic systems.

*Compatible With Original MC4 Solar Connector PV-KBT4/KST4
*TUV/UL/CE Certified & 15 Years Manufacturing Experience
*Protection IP68 For Outdoor Waterproof & UV Resistance
*Proven Multi-Contact Technology With Long-Term Stability
*Contact Now, Quote Online& Support The Free Sample

Specification Of MC4 solar cable connectors

MC4 solar cable connectors
	Product NO.	SY-CC4G
	Insulation material	PPO
	Rated Voltage	TUV 1000 DC/ UL 600V DC
	Rated Current	30A-60A
	Test voltage	6KV(50Hz,1Min)
	Contact material	copper, tin plated
	Contact resistance	less than 0.5 m ohm
	Degree of protection	IP68
	Pin dimension	4.0 MM,CNC PINS
	Compatible Solar cable	2.5/4.0 /6.0 mm² (14/12/10 AWG)

DRAWING of MC4 solar cable connectors

Certifications

SYSOLAR obtains TUV, CE, RoHS, and other certifications. TUV certification prevents personal injury and property damage may be caused during use connector. Our factory strictly controls the quality of products according to the requirements of certification, ensuring long-term stable operation of solar energy systems with our MC4 connector and solar cable.

MC4 solar cable connectors

Production Processes of MC4 solar cable connectors

First of all, need to die casting pins. And then inject plastic into the mc4 connector mold. Next, use the machine to assembly positioning shrapnel. Fourth, auto assembly O-ring and connector. After assembly, it’s the processes of testing. Firstly, test its contact resistance. Secondly, test its pull. Thirdly, test its waterproof.and then test its wet insulation. At last, plastic closures and package in a small bag.

MC4 solar cable connectors
